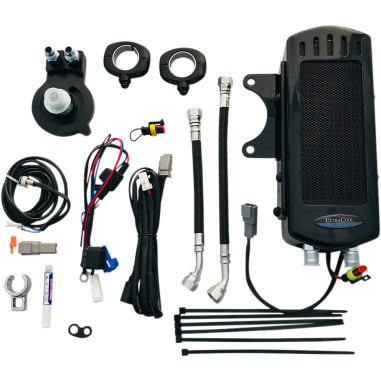

OIL COOLER KITS

  • Sealed waterproof IP68 fans produce 220 CFM of airflow
  • Oil adapter and thermal switch automatically turn on the dual fans when your oil reaches 210°​F
  • Specially designed aluminum heat exchanger with turbulators for maximum heat dissipation
  • Have the ability to drop your oil temperature up to 50°​F
  • Plug-and-play wiring harness with relay and waterproof connectors that all connects to the battery under the seat for simple installation
  • Black nylon coated stainless steel braided oil lines with AN6 fittings
  • Optional LED indicator light indicates when the fans are operating. (toggle or clamp handlebar LED mounts sold separately, see page 1445 of the 2019 Fatbook)
  • Specially designed oil line fitting wrench
  • Complete kit; ready to install

OIL COOLER KITS

OIL COOLER KITS
  • OIL COOLER KITS

Part #DescriptionSug. Retail Price
0713-0203OIL COOLER KIT FLT SIDE$499.00
0713-0204OIL COOLER KIT FLT SIDE B$499.00
0713-0223OIL COOLER KIT XL SIDE CH$499.00
0713-0224OIL COOLER KIT XL SIDE BK$499.00
