HIGH-PERFORMANCE V-TWIN VALVE KIT

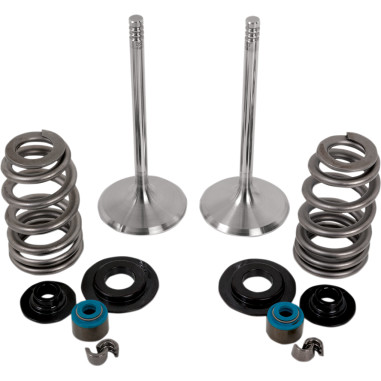

  • Kit includes two intake valves, springs, retainers, spring bases, Viton® valve seals and keepers
  • Valves are precision CNC-machined from a stainless one-piece forging for higher strength and durability
  • High grade allows design to withstand high heat and maintain roundness
  • Chrome coated
  • Micro polished 7mm stem for smoother finish and less friction resulting in improved performance
  • Multi-angle back cuts for enhanced flow
  • High-performance beehive springs are designed with the latest advancements in valve spring technology
  • Springs are nano-peened, polished and 100% inspected through load testing to ensure they exceed stringent quality standards to provide superior valve stability at high rpm range
  • The premium choice for a performance upgrade, they are "drop-in" ready; no machining of heads is required
  • Retainers made from 4140 chromoly steel
  • Heat treated and processed to maintain high strength and lightweight design
  • Keepers type FMOD7 lock angle 7°, triple radius groove, standard install height
  • Equipped with chromoly spring bases
  • Come with Viton® seals designed for maximum retention of elastic properties, along with excellent resistance to fluids, heat, and aging
  • Spring dia. (large end) OD 1.445"/ID 1.000"; spring dia. (small end): OD 1.095"/ID 0.650"; installed height 180 lbs @ 1.850"; open load 400 lbs @ 1.250"; spring rate 370 lbs-in.; max coil bind 1.210"

HIGH-PERFORMANCE V-TWIN VALVE KIT

HIGH-PERFORMANCE V-TWIN VALVE KIT
  • HIGH-PERFORMANCE V-TWIN VALVE KIT

Part #DescriptionSug. Retail Price
0926-2873High Performance Intake Valve Kit$155.99
