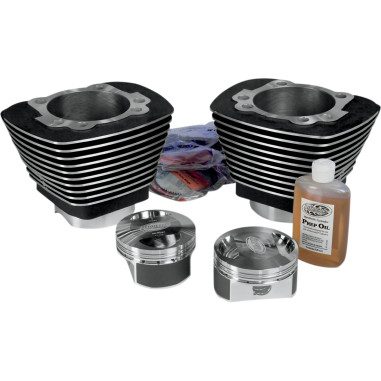

BOLT-ON BIG BORE KITS [0903-0844]

CYLINDER KT 1250BUEL B/H
  • 0903-0844
Part # Description Sug. Retail Price
0903-0844 Bolt-On Big Bore Kit Black/High-Lighted Fins 1250cc Domed Pistons Thunderstorm Heads $1,033.95

Overview

  • Revolution™ aerospace-grade all-aluminum cylinders with nickel-silicon-carbide electroplated bores, which means NO SLEEVING; allows larger bore sizes and less friction for more horsepower, lower temps and a longer lifespan
  • True bolt-on kit that delivers major power with no machine work required
  • Also includes Wiseco forged pistons with rings (that are specifically designed for optimal compatibility with Revolution Performance's cylinders), wrist pins, circlips and high-performance head and base gaskets
  • Available in four finishes: natural silver, black, black with highlighted fins or granite (matches engines of Screamin' Eagle models)
  • Replacement head and base gasket sets available separately
  • Made in the U.S.A.

NOTE: For replacement pistons and rings, see Revolution Performance Big Bore Piston Kits.

Specifications

BORE:3.563"
COLOR:Black
COMPRESSION:10.5
FINISH:Black w/ Highlighted Fins
MADE IN THE U.S.A.:Yes
MATERIAL:Aluminum
MODEL:Big Bore
NOTE:Must Use Thunderstorm Heads.
PACKAGING:Kit With Gasket.
SIZE:1250cc
SPECIFIC APPLICATION:Yes
STROKE:3 13/16"
STYLE:
  • 10.5:1 Domed Pistons
  • Big Bore
  • Bolt-on
TYPE:
  • Cylinder Kit
  • Gasket Kit
  • Piston Kit

Application(s)

Year Make Model
1997 - 2002BuellM2 Cyclone
2000 - 2002BuellM2 Cyclone Low
1996 - 1998BuellS1 Lightning
1998BuellS1 White Lightning
1994 - 1996BuellS2 Thunderbolt
1996BuellS2T Thunderbolt
1997 - 2002BuellS3 Thunderbolt
1997 - 2002BuellS3T Thunderbolt
1999 - 2002BuellX1 Lightning
2002BuellX1W White Lightning

Catalogs Containing This Part

Name Page Number
14 Drag FatBook624
