3000 SERIES DIGITAL INSTRUMENTS [2211-0027]

• High-quality digital instruments that offer stable, accurate and easy-to-view readings
• Teal display offers high-contrast visibility, even in sunlight
• All gauges have machined aluminum housings, chrome front bezels and non-glare, scratch-resistant lenses

SPEEDOMETERS

• 3013 model is an adjustable 225 mph speedometer; calibration is easily adjusted for almost any gearing and tire size combination
• Automatic turn signal canceling compatible
• Displays speed in numeric and bar graph form
• Push button calibration
• Features turn signal, low oil, high-beam and neutral indicators
• Odometer has resettable trip meter
• Odometer has two resettable trip meters and a miles-to-service meter with warning
• 3011 model is an adjustable 199 mph speedometer that calibrates to almost any gearing and tire size combination; easy push button calibration
• Performs calculations and displays high speed recall, 0-60 timer and 1/4-mile time and speed

SPEEDOMETER/TACHOMETER

• Gear position indicator works with 3- to 6-speed transmissions
• Odometer has two resettable trip meters, an hour meter and miles-to-service meter with warning
• Performs calculations and displays high speed recall, high rpm recall, 0-60 timer and 1/4-mile time and speed
• Tachometer displays as bar graph and features an adjustable shift point warning
• Displays "check engine" and "wait to start" lights
• Features turn signal, neutral, low oil pressure, low voltage, high beam and security indicators
• Tachometer calibration is easily adjusted for combinations of one to 15 cylinders without using coils
• Adjustable 255 mph speedometer calibrates easily to almost any gearing and tire size combination; push button calibration
• Automatic turn signal canceling compatible

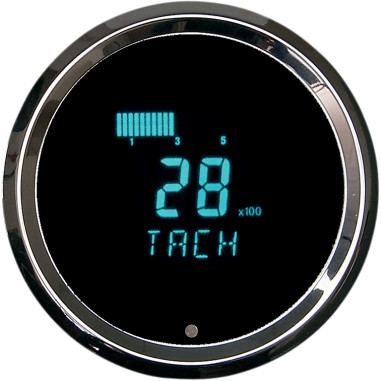

TACHOMETERS

• Display rpm and high rpm recall
• Work with single- or dual-fire ignitions
• 3021 model features an adjustable shift point warning and hour meter; when used with 3011 model speedometer, tachometer displays gear position indicator
• Both models have 0-18,000 rpm range and easily adjust for combinations of one to fifteen cylinders without using coils; push button calibration

NOTE: 33/8" speedometer, speedometer/tachometer and tachometer and 21/16" engine instruments will fit the 96-06 FLTR, FLHT fairing.
