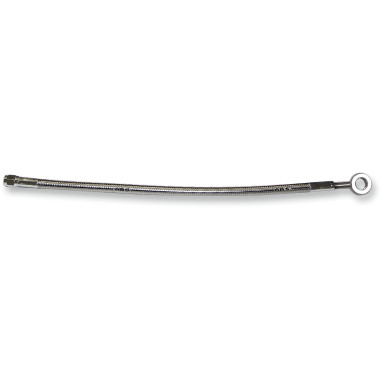

DESIGNER SERIES SINGLE-DISC ABS-SPECIFIC FRONT BRAKE LINE KITS FOR SOFTAILS [1741-3740]

LINE BRK FRT PS ABS 22
  • 1741-3740
Part # Description Sug. Retail Price
1741-3740 22" $50.95

Overview

  • Ultra-low-expansion brake line construction designed specifically for ABS system requirements
  • ABS models utilize a two-piece design consisting of a direct bolt-on lower assembly used in conjunction with alternative length upper lines joined together by AN -3 fittings for easy installation
  • Matching braid color and weave on all Magnum control cables and brake lines
  • Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor
  • All fittings are highly polished and available in chrome or black chrome plated
  • Three upper brake line banjo angles (90°, 35° and 180°) at master cylinder ensures proper routing
  • Inner PTFE tubing with over 100% Kevlar® coverage provides the ultimate in high performance by greatly reducing line expansion in stock and plus-length applications for excellent brake control and safety ratings
  • Sterling Chromite® II uses patented technology to look like chrome
  • Black Pearl has a crystal clear-coat over a black wire braid with black-chrome fittings
  • Polished Stainless braid is cleaner and brighter than standard stainless
  • Exceeds all DOT FMVSS-106 requirements
  • Made in the U.S.A.
  • IMPORTANT - HOW TO ORDER:Choose lower line by model specific chart (this applies for both OEM replacement applications and alternative lengths)
  • For OEM applications, choose upper line by referencing OEM length chart
  • For alternative lengths use your stock upper brake line as a reference. Measure from the point at which the soft line enters the crimp collar on the lower portion of the line and follow the brake line routing up to your master cylinder

NOTE: Harley-Davidson motorcycles equipped with single-disc ABS (anti-lock brake system) require ABS specific upper and lower brake line kits. Failure to do so may result in compromised anti-lock braking ability. Magnum Shielding brake line kits manufactured specifically for these applications are identified with the letters "ABS" printed directly on the brake hose

Specifications

BANJO ANGLE:180°
CERTIFICATION:DOT
COLOR:Natural
FINISH:Polished
LENGTH:22"
MADE IN THE U.S.A.:Yes
MATERIAL:
  • Clear Jacket
  • Stainless Steel
MODEL:Designer Series
NOTE:With ABS.
POSITION:
  • Front
  • Upper
SIZE:7/16"
SPECIFIC APPLICATION:No
STYLE:Replacement
TYPE:Brake Line

Catalogs Containing This Part

Name Page Number
14 Drag FatBook1213
