3000 SERIES DIGITAL INSTRUMENTS [DS250036]

2 1/16
  • DS250036
Part # Description Sug. Retail Price

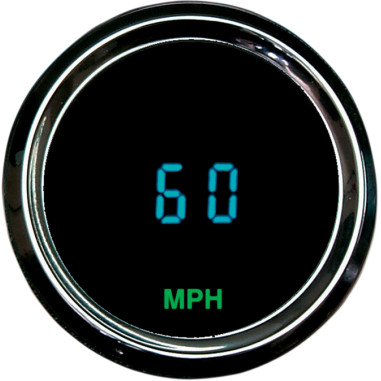

DS250036 2 1/16" ODYSSEY II SPEEDO $294.95

Overview

  • High-quality digital instruments that offer stable, accurate and easy-to-view readings
  • Teal display offers high-contrast visibility, even in sunlight
  • All gauges have machined aluminum housings, chrome front bezels and non-glare, scratch-resistant lenses

SPEEDOMETERS

  • 3013 model is an adjustable 225 mph speedometer; calibration is easily adjusted for almost any gearing and tire size combination
  • Push button calibration
  • Odometer has resettable trip meter
  • 3011 model is an adjustable 199 mph speedometer that calibrates to almost any gearing and tire size combination; easy push button calibration
  • Displays speed in numeric and bar graph form
  • Odometer has two resettable trip meters and a miles-to-service meter with warning
  • Features turn signal, low oil, high-beam and neutral indicators
  • Performs calculations and displays high speed recall, 0-60 timer and 1/4-mile time and speed
  • Automatic turn signal canceling compatible

SPEEDOMETER/TACHOMETER

  • Adjustable 255 mph speedometer calibrates easily to almost any gearing and tire size combination; push button calibration
  • Tachometer displays as bar graph and features an adjustable shift point warning
  • Tachometer calibration is easily adjusted for combinations of one to fifteen cylinders without using coils
  • Odometer has two resettable trip meters, an hour meter and miles-to-service meter with warning
  • Features turn signal, neutral, low oil pressure, low voltage, high beam and security indicators
  • Performs calculations and displays high speed recall, high rpm recall, 0-60 timer and 1/4-mile time and speed
  • Displays "check engine" and "wait to start" lights
  • Gear position indicator works with 3- to 6-speed transmissions
  • Automatic turn signal canceling compatible

TACHOMETERS

  • Both models have 0-18,000 rpm range and easily adjust for combinations of one to fifteen cylinders without using coils; push button calibration
  • Work with single- or dual-fire ignitions
  • Display rpm and high rpm recall
  • 3021 model features an adjustable shift point warning and hour meter; when used with 3011 model speedometer, tachometer displays gear position indicator

NOTE: 33/8" speedometer, speedometer/tachometer and tachometer and 21/16" engine instruments will fit the 96-06 FLTR, FLHT fairing.

Specifications

MADE IN THE U.S.A.:Yes
