OFFSET TRANSMISSION SPROCKETS

OFFSET TRANSMISSION SPROCKETS
  • OFFSET TRANSMISSION SPROCKETS
  • CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity
  • For use with .530 pitch chain
  • Made in the U.S.A.
  • Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for "Total Offset" description
  • Sprockets are drilled and tapped to accommodate late-model lock plate, PART # DS-360182, available separately
  • Will also fit 86-93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring)

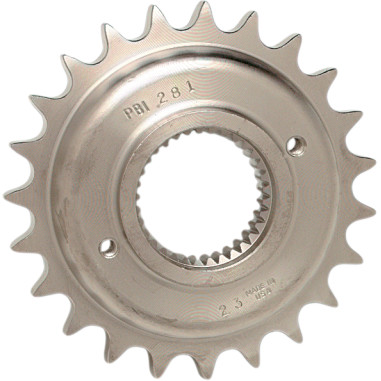

Offset Transmission Sprockets

Offset Transmission Sprockets

Part #DescriptionSug. Retail Price
1212-013622-Tooth .500" Offset Transmission Sprocket$69.95
1212-013723-Tooth .500" Offset Transmission Sprocket$69.95
1212-013824-Tooth .500" Offset Transmission Sprocket$69.95
1212-026022-Tooth .000" Offset Transmission Sprocket$69.95
1212-026124-Tooth .000" Offset Transmission Sprocket$69.95
1212-026224-Tooth 1.310" Offset Transmission Sprocket$129.95
1212-038325-Tooth .750" Offset Transmission Sprocket$102.95
1212-038426-Tooth .750" Offset Transmission Sprocket$102.95
1212-052324-Tooth .500" Offset Transmission Sprocket$102.95
1212-052425-Tooth .500" Offset Transmission Sprocket$102.95
1212-052526-Tooth .500" Offset Transmission Sprocket$102.95
1212-052624-Tooth .750" Offset Transmission Sprocket$102.95
PBI-281-2121-Tooth .750" Offset Transmission Sprocket$76.95
PBI-281-2222-Tooth .750" Offset Transmission Sprocket$76.95
PBI-281-2323-Tooth .750" Offset Transmission Sprocket$76.95
PBI-281-2424-Tooth .750" Offset Transmission Sprocket$76.95
PBI-288-2323-Tooth 1.06" Offset Transmission Sprocket$91.95
PBI-288-2424-Tooth 1.06" Offset Transmission Sprocket$91.95
