UNIVERSAL BRAKE LINES AND CHROME STEEL FITTINGS [DS098293]

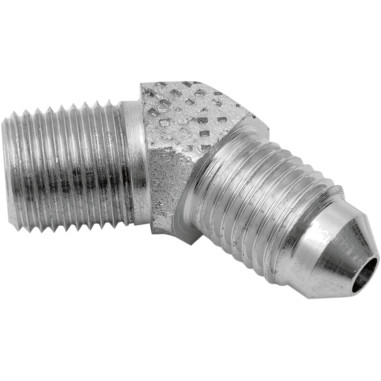

#3 MALE X 1/8 PIPE 45DEG.
  • DS098293
Part # Description Sug. Retail Price
DS098293 Universal Chrome AN-3 X 1/8" NPT 45° Brake Fitting $11.95

Overview

  • Top-quality clear-coated stainless steel-braided or black vinyl-coated stainless steel/braided brake lines, banjo bolts, brake line fittings and crush washers provide consistent, reliable performance
  • Lines are available in 9" through 80" lengths
  • Feature chrome-plated AN-3 ends
  • Meet DOT MVSS-106 specifications
  • Banjo bolts and fittings are chrome-plated steel and sold separately
  • Made in the U.S.A.

NOTE: 04-13 XL models use metric 10mm x 1.25" and 12mm x 1.50" banjo bolts, washers and fittings. All Big Twin (except 08-13 Dressers) and pre-04 XL models use standard 3/8" and 7/16" banjo bolts, washers and fittings. Fittings and washers listed as 3/8"/10mm can be used in either application.

Specifications

ANGLE:45º
COLOR:Chrome
FINISH:Chrome
MADE IN THE U.S.A.:Yes
MATERIAL:Steel
PACKAGING:Each
SIZE:
  • 1/8" NPT
  • AN #3
SPECIFIC APPLICATION:No
STYLE:Union
TYPE:Fitting

Catalogs Containing This Part

Name Page Number
14 Drag FatBook1211
15 Drag OldBook240
15 Drag OldBook680
