JX HANDLEBAR CONTROLS [0611-0011]

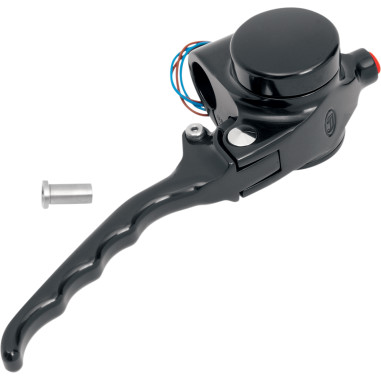

M/CYL BR 9/16 W/SWTCH BLK
  • 0611-0011
Part # Description Sug. Retail Price
0611-0011 M/CYL BR 9/16 W/SWTCH BLK $349.95

Overview

  • Available in show chrome or deep, hard, black anodized finishes
  • Designed to fit 1"-diameter handlebar applications; master cylinder bodies are relieved to accept up to 11/2"-diameter handlebars right up to the clamp face
  • Designed with a special bushing that doubles as a mirror shaft mount for an extra-clean look (mirrors are not included)
  • Feature Joker's exclusive self-lubricating polymer piston and seal kits, also produced by Joker; special ball bearing-actuated piston rides in a hard-surface roller-burnished bore for more precise feel and longer life as the bearing glides across the piston as you engage the brake or clutch
  • Installs on handlebar with integrated pinch clamp system that is ultra-compact without an extra clamp piece to bolt in place to provide a trim and clean look
  • Left-side hydraulic clutch master cylinders are available in 9/16" or 11/16" or a mechanical cable version
  • Made in the U.S.A.
  • Master cylinders available with or without brake light switches in 9/16" (single disc brake) and 11/16" (dual disc front brake)
  • See page ??? for grip spacers
  • Stylish solid stainless steel pivot pin for non-mirror applications
  • Unique master cylinder reservoir cap screws on to provide instant access to brake fluid without having to use a wrench

Specifications

ACTUATION:Hydraulic
BORE SIZE:9/16"
BRAKE LIGHT SWITCH:Yes
COLOR:Black
FINISH:Anodized
MADE IN THE U.S.A.:Yes
MATERIAL:Aluminum
MODEL:JX
SPECIFIC APPLICATION:No
STYLE:With Brake Light Switch
TYPE:Brake Lever Control
