JX HANDLEBAR CONTROLS

JX HANDLEBAR CONTROLS
  • JX HANDLEBAR CONTROLS
  • Available in show chrome or deep, hard, black anodized finishes
  • Designed with a special bushing that doubles as a mirror shaft mount for an extra-clean look (mirrors are not included)
  • Stylish solid stainless steel pivot pin for non-mirror applications
  • Unique master cylinder reservoir cap screws on to provide instant access to brake fluid without having to use a wrench
  • Feature Joker's exclusive self-lubricating polymer piston and seal kits, also produced by Joker; special ball bearing-actuated piston rides in a hard-surface roller-burnished bore for more precise feel and longer life as the bearing glides across the piston as you engage the brake or clutch
  • Master cylinders available with or without brake light switches in 9/16" (single disc brake) and 11/16" (dual disc front brake)
  • Left-side hydraulic clutch master cylinders are available in 9/16" or 11/16" or a mechanical cable version
  • Installs on handlebar with integrated pinch clamp system that is ultra-compact without an extra clamp piece to bolt in place to provide a trim and clean look
  • Designed to fit 1"-diameter handlebar applications; master cylinder bodies are relieved to accept up to 11/2"-diameter handlebars right up to the clamp face
  • See page ??? for grip spacers
  • Made in the U.S.A.
Brake Lever Control

Brake Lever Control

Part #DescriptionSug. Retail Price
0611-0011M/CYL BR 9/16 W/SWTCH BLK$349.95
0611-0012Chrome JX 9/16" Bore Brake Side Handlebar Control Without Brake Light Switch$300.95
0611-0013Black JX 9/16" Bore Brake Side Handlebar Control Without Brake Light Switch$300.95
0611-0014M/CYL BR 11/16 W/SWTCH CH$349.95
0611-0015M/CYL BR 11/16 W/SWTCH BL$349.95
0611-0016Chrome JX 11/16" Bore Brake Side Handlebar Control Without Brake Light Switch$300.95
0611-0017Black JX 11/16" Bore Brake Side Handlebar Control Without Brake Light Switch$300.95
Handlebar Control

Handlebar Control

Part #DescriptionSug. Retail Price

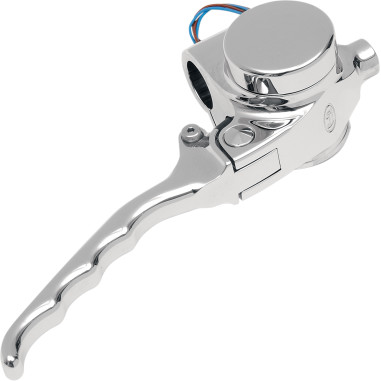

0611-0010M/CYL BR 9/16 W/SWTCH CHR$349.95
Clutch Lever Control

Clutch Lever Control

Part #DescriptionSug. Retail Price

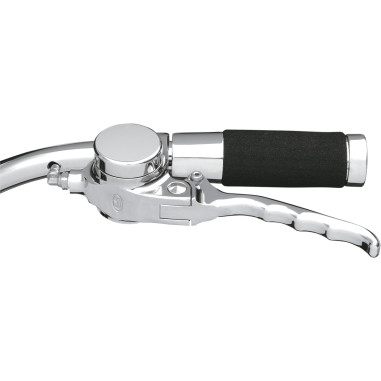

0612-0073Chrome JX 9/16" Bore Hydraulic Clutch Side Handlebar Control$300.95
0612-0074Black JX 9/16" Bore Hydraulic Clutch Side Handlebar Control$300.95
0612-0075Chrome JX 11/16" Bore Hydraulic Clutch Side Handlebar Control$300.95
0612-0076Black JX 11/16" Bore Hydraulic Clutch Side Handlebar Control$300.95
0652-0423Chrome JX Mechanical Clutch Side Handlebar Control$210.95
0652-0424Black JX Mechanical Clutch Side Handlebar Control$210.95
Brake Switch Assembly

Brake Switch Assembly

Part #DescriptionSug. Retail Price
0616-0027Chrome JX Round Master Cylinder Brake Light Switch Assembly$69.95
0616-0028Black JX Round Master Cylinder Brake Light Switch Assembly$69.95
