RIGID FRAME FOR 180/200 REAR TIRE [0501-0072]
| Part # |
Description |
Sug. Retail Price |
| 0501-0072 |
FRAME RIGID BIG TWIN180MM |
$917.95 |
Overview
- 30° rake, 0° stretch
- Constructed of 11/4" DOM steel tubing, mandrel bent and welded using both TIG and MIG processes
- For 180 rear tire use 11/2" wide belt; for 200 rear tire use 11/8" wide belt
- Requires a removable transmission plate for 4-, 5- and 6-speed transmissions; transmission plate sold separately
- Accepts Shovelhead motors with clearance for cylinders up to .200" taller than a stock Evolution motor
- Uses stock 86-99 Softail oil tank and rear brake caliper (sold separately)

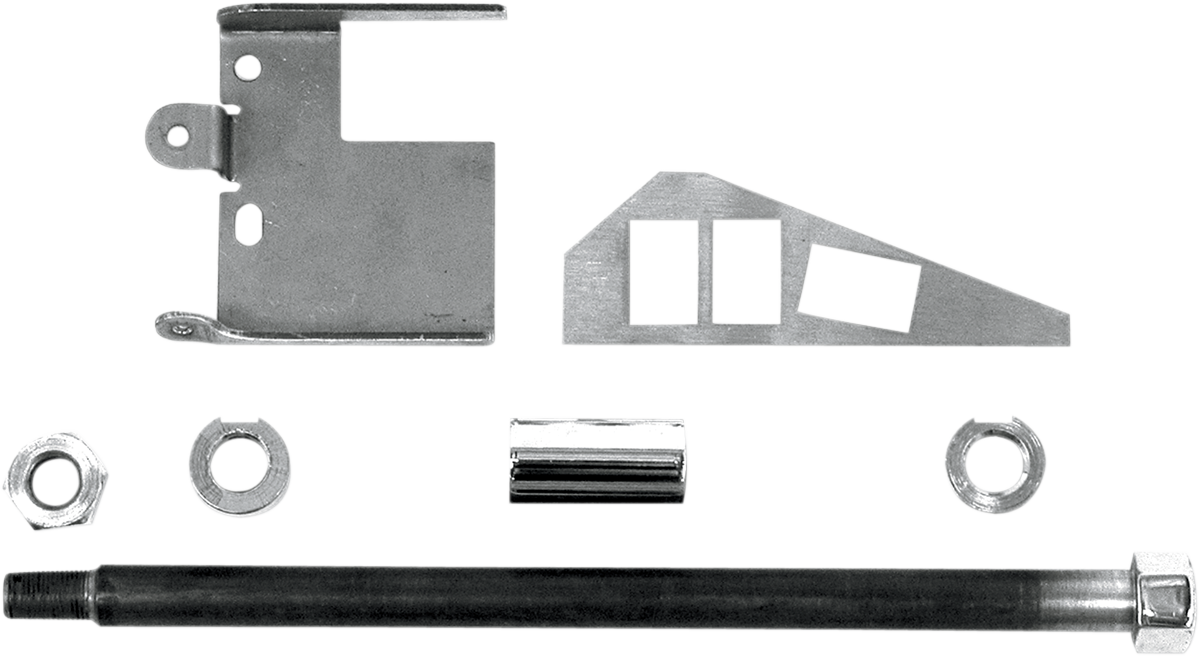

- Includes 3/4" rear axle kit
- Wheel spacers not included
- Made in the U.S.A.
Specifications
| MADE IN THE U.S.A.: | Yes |
| MODEL: | Big Twin |
| SPECIFIC APPLICATION: | Yes |
| STYLE: | Rigid |
| TYPE: | Frame |
