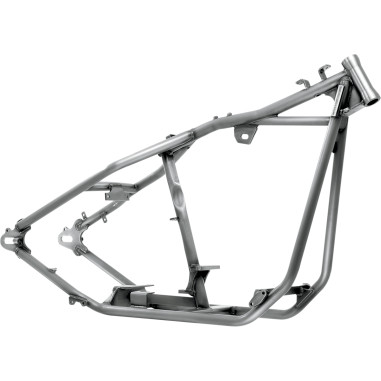

RIGID FRAME FOR 180/200 REAR TIRE

Rigid Frame For 180/200 Rear Tire
  • 30° rake, 0° stretch
  • Constructed of 11/4" DOM steel tubing, mandrel bent and welded using both TIG and MIG processes
  • For 180 rear tire use 11/2" wide belt; for 200 rear tire use 11/8" wide belt
  • Requires a removable transmission plate for 4-, 5- and 6-speed transmissions; transmission plate sold separately
  • Accepts Shovelhead motors with clearance for cylinders up to .200" taller than a stock Evolution motor
  • Uses stock 86-99 Softail oil tank and rear brake caliper (sold separately)
  • Includes 3/4" rear axle kit
  • Wheel spacers not included
  • Made in the U.S.A.

Appears on page 227 of 2013 OldBook™

Rigid Frame For 180/200 Rear Tire />

Rigid Frame For 180/200 Rear Tire

Part #DescriptionSug. Retail Price
0501-0072FRAME RIGID BIG TWIN180MM$917.95
