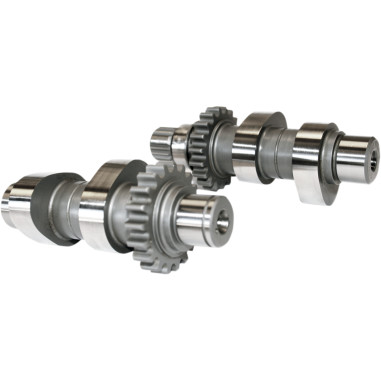

REAPER® CAMS FOR TWIN CAM [0925-0673]

CAMS 543C CHAIN DRV 07-14
  • 0925-0673
Part # Description Sug. Retail Price
0925-0673 Reaper® Cams For Twin Cam 543 Cams Chain Drive $329.95

Overview

  • Smooth camshaft lobe ramps are easier on valve-train components and eliminate excessive valve-train noise and wear
  • Produce more power and torque in the riding RPM range increasing throttle response, acceleration and fuel mileage
  • Made in the U.S.A.
  • Wide lobe separations produce wide power bands
  • Feuling® camshaft installation kits recommended; see page ???
  • Dyno proven and track tested

594 CAMS

  • Fierce performing camshaft for an array of engine sizes, large displacement 103", 110" and 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (2,200 - 6,250 rpm)
  • Large displacements respond well to increased compression ratio and smaller displacements will require it
  • Smaller high-revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (2,500 - 6,800 rpm)

630 CAMS

  • 2500-6900+ rpm power range
  • Carburetor and or throttle body work required along with a performance exhaust and intake system
  • Maintains low end performance with eye-blurring mid and top end power
  • High-performance valve springs, pushrods and lifters required
  • Vicious power gains, wide streetable power band from high-lift-profile camshaft for high-performance engines with highly modified cylinder heads and compression ratio

574 CAMS

  • Wicked power band for modified engines and an excellent bolt-in for stock 96", 103" and 110" engines; a great all-around camshaft with solid low end performance and mind-blowing mid and top end power
  • Extremely smooth cam lobe design creates a smooth and quiet valve train
  • Performance valve springs required on 99-04 engines and performance pushrods and lifters recommended
  • 2100-6500 rpm power range
  • Responds well to modified cylinder heads, increased compression ratio, performance exhaust and intake systems

525 CAMS

  • 1750-5500 rpm power range
  • Great bolt-in camshaft upgrade for stock 88” and 96" engines also performs very well in 103" strokers, will also respond well to increased compression and cylinder head work
  • Produces strong low- and mid-range power with linear horsepower and torque curve
  • Can be used with factory valve springs, pushrods and lifters
  • Increases throttle response and eases starting
  • Designed to increase torque band width and increase fuel economy

543 CAMS

  • Cam is easy starting, increases throttle response and fuel mileage. Responds well to increased compression ratio, performance exhaust and a high-flow air cleaner
  • The 'Freeway Flyer', great camshafts for those who want more top end power than the 525 cams without sacrificing low end torque
  • Performance valve springs are required on 99-04 engines and performance pushrods and lifters are recommended but not required
  • Extremely smooth cam lobe layout maintains quiet valve train and produces the smoothest cruise power band available
  • Excellent bolt-in camshaft for stock to mild 96" and 103" engines and works well in 88" and 95" engines
  • 1,900 - 6,000 rpm power range

NOTE: Installation will require the separate purchase of a S&S or Andrews 4-gear gear drive kit; see page ???.

NOTE: 594 cams require high-performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch.

Specifications

EXHAUST CLOSE:12º
EXHAUST DURATION:248°
EXHAUST LIFT:.574"
EXHAUST OPEN:56°
INTAKE CLOSE:43°
INTAKE DURATION:238°
INTAKE LIFT:.543"
INTAKE OPEN:15°
MADE IN THE U.S.A.:Yes
MODEL:Reaper®
PACKAGING:Pair
SPECIFIC APPLICATION:Yes
STYLE:
  • 543 Cams
  • Chain Drive
TYPE:Cam

Application(s)

Year Make Model
2011 - 2013Harley-DavidsonBlackline - FXS
2013 - 2014Harley-DavidsonBreakout (EFI) FXSB
2008 - 2011Harley-DavidsonCross Bones (EFI) - FLSTSB
2007 - 2014Harley-DavidsonDeluxe (EFI) - FLSTN
2007Harley-DavidsonDeuce (EFI) - FXSTD
2008 - 2014Harley-DavidsonDyna Fat Bob (EFI) - FXDF
2007 - 2009Harley-DavidsonDyna Low Rider (EFI) - FXDL
2006Harley-DavidsonDyna Low Rider-Injected - FXDL-I
2007 - 2014Harley-DavidsonDyna Street Bob (EFI) - FXDB
2006Harley-DavidsonDyna Street Bob - FXDB-I
2007 - 2010Harley-DavidsonDyna Super Glide (EFI) - FXD
2007 - 2014Harley-DavidsonDyna Super Glide Custom (EFI) - FXDC
2006Harley-DavidsonDyna Super Glide Custom Injected - FXDC I
2006Harley-DavidsonDyna Super Glide Injected - FXD I
2012 - 2014Harley-DavidsonDyna Switchback - FLD
2007 - 2008Harley-DavidsonDyna Wide Glide (EFI) - FXDWG
2010 - 2014Harley-DavidsonDyna Wide Glide (EFI) - FXDWG
2006Harley-DavidsonDyna Wide Glide-Injected - FXDWG-I
2007 - 2013Harley-DavidsonElectra Glide Classic (EFI) - FLHTC
2007 - 2009Harley-DavidsonElectra Glide Standard (EFI) - FLHT
2008 - 2014Harley-DavidsonElectra Glide Ultra Classic (EFI) - FLHTCU
2010 - 2014Harley-DavidsonElectra Glide Ultra Limited - FLHTK
2007 - 2014Harley-DavidsonFat Boy (EFI) - FLSTF
2010 - 2014Harley-DavidsonFat Boy Lo - FLSTFB
2012 - 2014Harley-DavidsonFLS Slim
2007 - 2014Harley-DavidsonHeritage Classic (EFI) - FLSTC
2007 - 2009Harley-DavidsonRoad Glide (EFI) - FLTR
2010 - 2013Harley-DavidsonRoad Glide Custom - FLTRX
2011 - 2013Harley-DavidsonRoad Glide Ultra - FLTRU
2007 - 2014Harley-DavidsonRoad King (EFI) - FLHR
2007 - 2013Harley-DavidsonRoad King Classic (EFI) - FLHRC
2007Harley-DavidsonRoad King Custom (EFI) - FLHRS
2008 - 2009Harley-DavidsonRocker (EFI) - FXCW
2008 - 2011Harley-DavidsonRocker C (EFI) - FXCWC
2007 - 2010Harley-DavidsonSoftail Custom (EFI) - FXSTC
2007 - 2009Harley-DavidsonSoftail Night Train (EFI) - FXSTB
2007Harley-DavidsonSoftail Springer Classic (EFI) - FLSTSC
2007Harley-DavidsonSoftail Standard (EFI) - FXST
2007 - 2014Harley-DavidsonStreet Glide (EFI) - FLHX
2014Harley-DavidsonStreet Glide Special - FLHXS
2010 - 2011Harley-DavidsonStreet Glide Trike - FLHXXX
2009 - 2014Harley-DavidsonTri Glide Ultra Classic - FLHTCUTG
2007Harley-DavidsonUltra Classic (EFI) - FLHTCU

Catalogs Containing This Part

Name Page Number
14 Drag FatBook649
