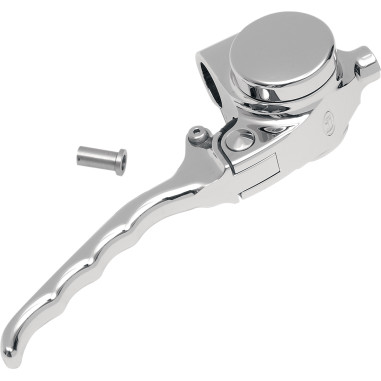

JX HANDLEBAR CONTROLS [0611-0012]
| Part # |
Description |
Sug. Retail Price |
| 0611-0012 |
M/CYL BR9/16 W/O SWTCH CH |
$300.95 |
Overview
- Available in show chrome or deep, hard, black anodized finishes
- Designed with a special bushing that doubles as a mirror shaft mount for an extra-clean look (mirrors are not included)
- Stylish solid stainless steel pivot pin for non-mirror applications
- Unique master cylinder reservoir cap screws on to provide instant access to brake fluid without having to use a wrench
- Feature Joker's exclusive self-lubricating polymer piston and seal kits, also produced by Joker; special ball bearing-actuated piston rides in a hard-surface roller-burnished bore for more precise feel and longer life as the bearing glides across the piston as you engage the brake or clutch
- Master cylinders available without brake light switches in 9/16" (single disc brake) and 11/16" (dual disc front brake)
- Left-side hydraulic clutch master cylinders are available in 9/16" or 11/16" or a mechanical cable version

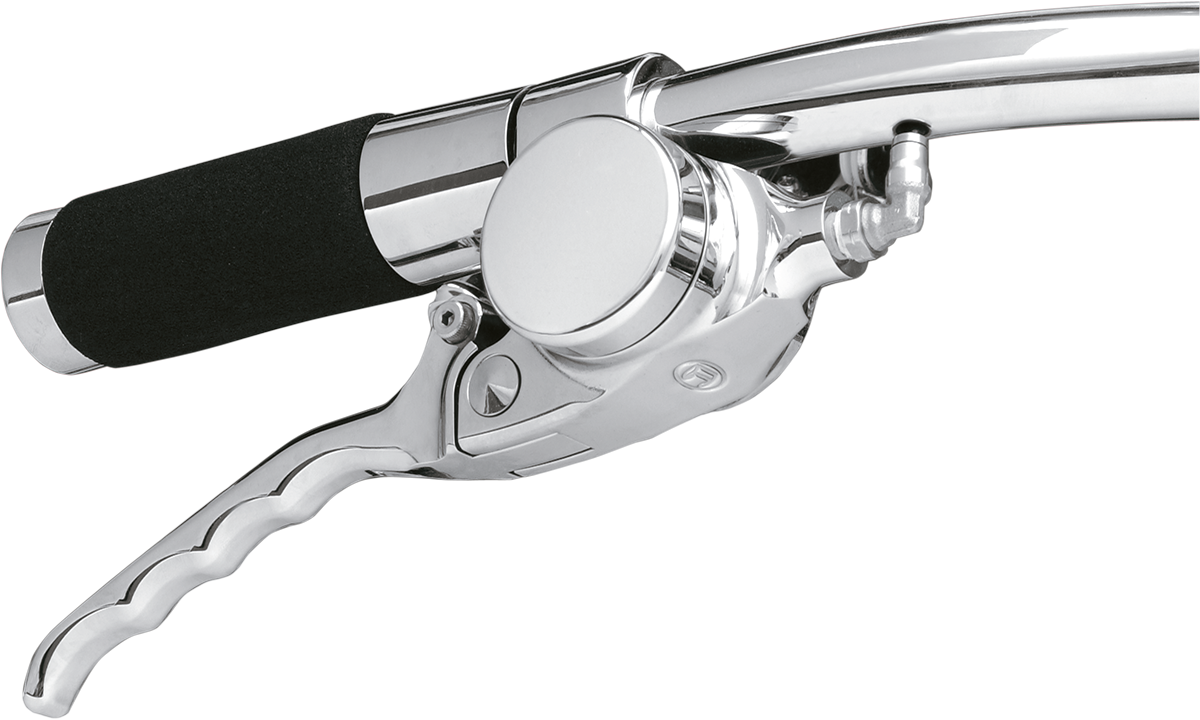

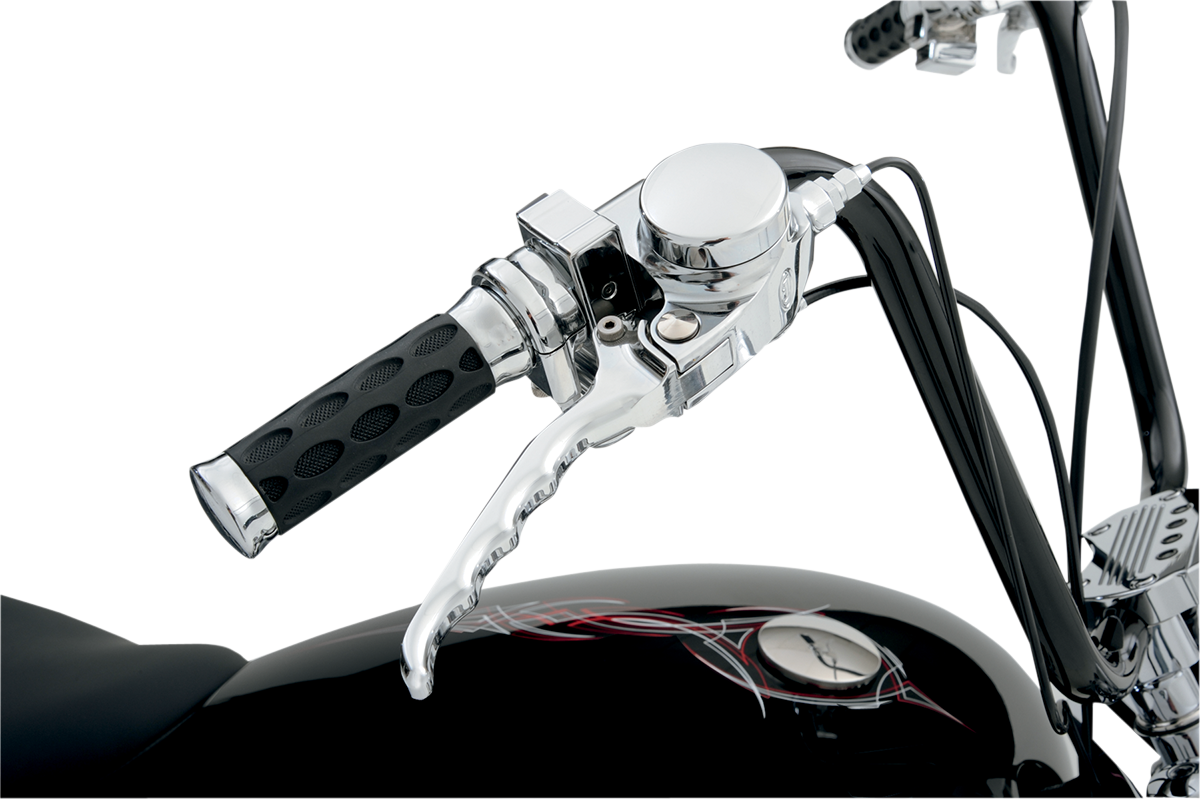

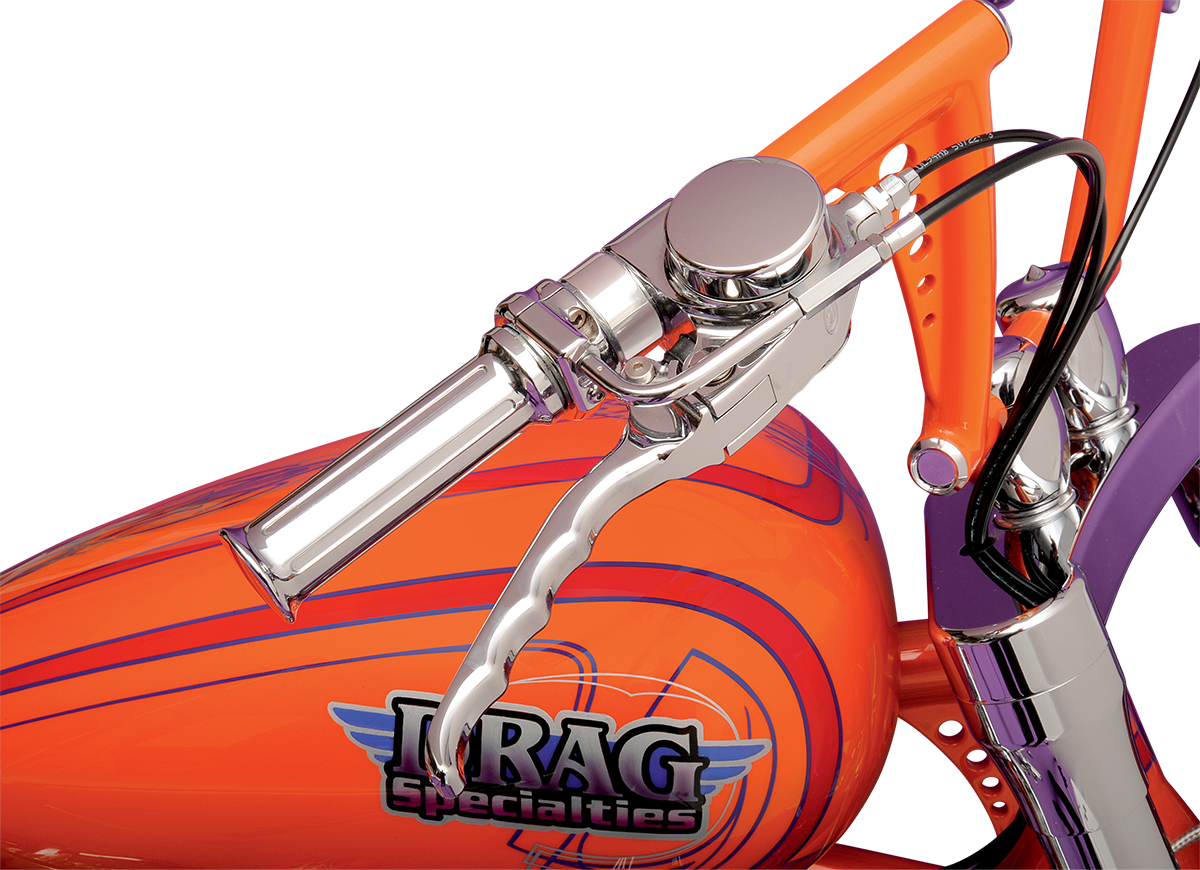

- Installs on handlebar with integrated pinch clamp system that is ultra-compact without an extra clamp piece to bolt in place to provide a trim and clean look
- Designed to fit 1"-diameter handlebar applications; master cylinder bodies are relieved to accept up to 11/2"-diameter handlebars right up to the clamp face
- See page ??? for grip spacers
- Made in the U.S.A.
Specifications
| ACTUATION: | Hydraulic |
| BORE SIZE: | 9/16" |
| BRAKE LIGHT SWITCH: | No |
| FINISH: | Chrome |
| MADE IN THE U.S.A.: | Yes |
| MATERIAL: | Aluminum |
| MODEL: | JX |
| SPECIFIC APPLICATION: | No |
| STYLE: | Without Brake Light Switch |
| TYPE: | Brake Lever Control |
Catalogs Containing This Part
| Name |
Page Number |
| 14 Drag FatBook | 1055 |
